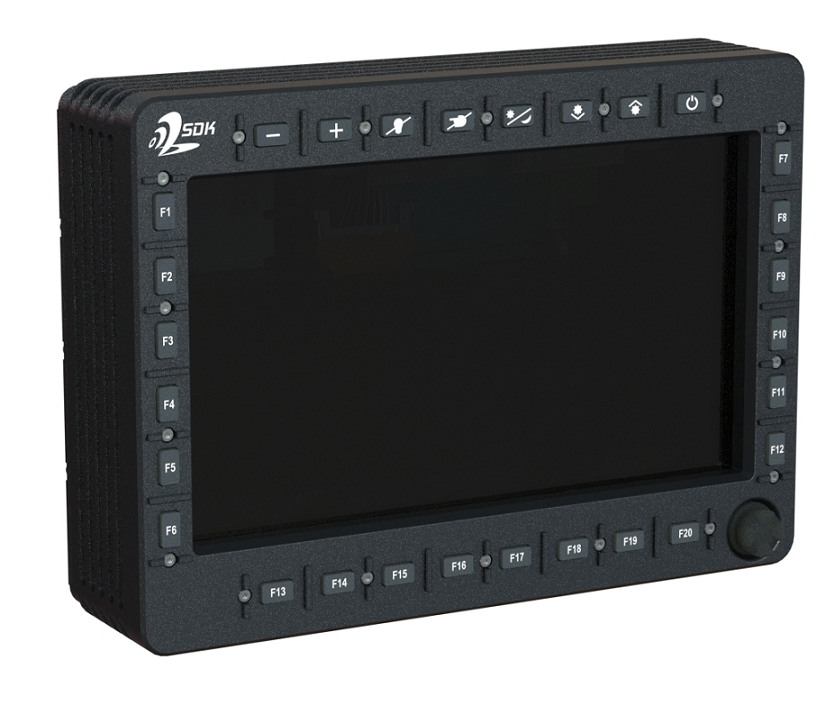

10.2″ Rugged GVA Smart Tactical Display
Model: SD-102RDG-G9
Rugged GVA Compatible Smart Tactical Display Engineered for Combat-Ready Situational Awareness
Built for Mission-Critical Environments
SD-102RDG-G9 GVA smart display integrates seamlessly into land, air, or naval platforms, providing operators with a reliable, intuitive visual interface for real-time decision-making.
Applications
- Unmanned Aerial/Armored Vehicle Control
- Surveillance & Reconnaissance Systems
- Armored Fighting Vehicle Battle Management Systems
- Target Acquisition & Tracking
- Command and Control Operations (C2)
Key Features
- MIL-STD-810 & MIL-STD-461 Certified for extreme environments
- 10.2″ Sunlight-Readable Display
- Multi-Touch Panel Supporting Glove Operation
- Full GVA (Generic Vehicle Architecture) Compliance
- High-Resolution Video Processing with real-time targeting overlay
- Multi-Function Soft Keys (F1–F20) for intuitive control
- Integrated Control Knob for tactile menu navigation
- Multiple Video Inputs: HD-SDI, CVBS, HDMI
- IP67 Sealed Housing for rugged outdoor or in-vehicle use
| • Brightness: | 0~100% Dimming Control |
| • Control Buttons: | 20-Key Programming Buttons |
| • Bonding: | Optical bonding AG/AR/AF |
| • Mounting: | VESA Mount |
| • Material: | Full Aluminum alloy |
| • Housing Coating: | 1.Bottom layer coating for EMI protection 2. Electronic parts coating for salt/fog protection |
| • Operating Temp.: | -32 deg. C to 71 deg. C |
| • Storage Temp.: | -40 deg. C to 85 deg. C |
| • Operating Humidity: | 5% to 95% (Non Condensing) |
| • Ingress Protection: | IP67 |
| • EMI: | MIL-STD-461G Compliance |
| • Reliability: | MIL-STD-810H Compliance |
