Model: UAVNX16-100R
Lightweight Military-Grade Edge AI Computing for UAV, UAS and Autonomous Platforms

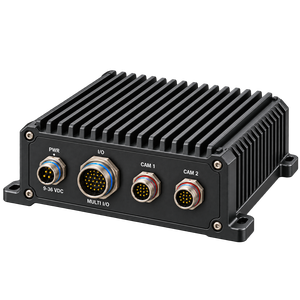

UAVNX16-100R is a lightweight, rugged Edge AI computer powered by NVIDIA® Jetson Orin™ NX 16GB and optimized specifically for UAV, UAS and autonomous airborne applications. Delivering up to 157 TOPS of AI performance in a compact IP67 fanless enclosure, it enables real-time computer vision, EO/IR processing, sensor fusion, autonomous navigation, object detection and advanced mission-payload processing directly at the tactical edge.
Designed for SWaP-constrained military platforms, UAVNX16-100R combines a compact 140 × 110 × 45 mm chassis, ≤1.0 kg target weight, rugged camera interfaces, industrial NVMe storage and 9–36 VDC power input with a design approach targeting MIL-STD-810H, MIL-STD-461G, MIL-STD-704F and applicable DO-160H requirements.
Built for Real-Time AI at the Tactical Edge
With the NVIDIA Jetson Orin NX 16GB, UAVNX16-100R provides up to 157 TOPS of AI performance through a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, an 8-core Arm Cortex-A78AE CPU and 16GB LPDDR5 memory with up to 102 GB/s memory bandwidth.
The platform supports NVIDIA JetPack™, CUDA®, TensorRT™, cuDNN, DeepStream and OpenCV, making it suitable for deployment of advanced AI inference, machine vision, autonomous navigation and sensor-processing workloads.
Key Advantages
- Up to 157 TOPS AI performance
- NVIDIA Jetson Orin NX 16GB
- Compact 140 × 110 × 45 mm footprint
- Target system weight ≤1.0 kg
- IP67 sealed rugged enclosure
- Fanless conduction cooling
- 2× GMSL2 camera channels with PoC
- Optional MIPI CSI-2 and GigE Vision / Ethernet camera configurations
- 1× Gigabit Ethernet
- 2× USB 3.1 Gen 1
- CAN 2.0 / CAN-FD
- Industrial NVMe SSD up to 2TB
- 9–36 VDC input
- Designed to meet MIL-STD-810H
- Designed to meet MIL-STD-461G
- Designed to meet MIL-STD-704F
- Designed to meet applicable DO-160H sections
The camera, storage and external I/O capabilities above are reflected in the current product specification.
