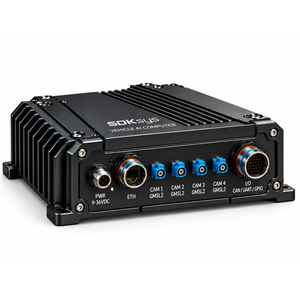

Model: VRCNX16-200R
NVIDIA Jetson Orin NX Platform for Military, Autonomous and Industrial Vehicles
The SDKsys Rugged Vehicle Edge AI Computer is designed for real-time AI processing in demanding military, autonomous and industrial vehicle environments. Based on the NVIDIA Jetson Orin NX 16GB platform, the system provides up to 157 TOPS of AI performance for computer vision, object detection, classification, tracking, sensor fusion and intelligent video analytics.
Four GMSL2 camera interfaces enable integration with vehicle-mounted EO, IR, thermal and machine-vision cameras. Gigabit Ethernet, CAN, UART, GPIO and I²C interfaces provide flexible connectivity with vehicle networks, sensors and control systems.
The rugged IP67 fanless enclosure and wide 9–36 VDC vehicle power input make the platform suitable for defense vehicles, UGVs, autonomous platforms, robotics, mining equipment and other harsh-environment applications.
Rugged Edge AI Processing for Vehicle Applications
- NVIDIA Jetson Orin NX 16GB
- Up to 157 TOPS AI performance
- 1024-core NVIDIA Ampere GPU with Tensor Cores
- 16GB LPDDR5 high-speed memory
- 4 × GMSL2 automotive camera inputs with FAKRA connectors
- Gigabit Ethernet
- CAN, UART, GPIO and I²C interfaces
- Industrial NVMe SSD storage options
- Wide-range 9-36 VDC vehicle power input
- Fanless conduction-cooled architecture
- Rugged CNC-machined aluminum enclosure
- IP67 ingress protection
- Operating temperature: -25°C to +70°C
- Compact dimensions: approximately 160 × 100 × 65 mm
- Approximate system weight: 1.7 kg, configuration dependent
- Designed for continuous operation in vehicle and industrial environments
